Diffusion Models (Part 3): Denoising Diffusion Implicit Models

In Part 1, we explored Denoising Diffusion Probabilistic Models (DDPMs)¹ and saw how they can turn pure noise into meaningful data. The idea is beautiful, but there’s a catch: sampling is slow. A DDPM often needs hundreds or even thousands of small denoising steps to create one sample.

Denoising Diffusion Implicit Models (DDIMs)² were introduced to fix this issue. They use the same basic diffusion idea as DDPMs, but change the way we sample so that we can generate good samples in far fewer steps.

In this post, we’ll look at how DDIMs work and why they’re so much faster. We’ll touch on some math, but only enough to develop an intuitive understanding of what’s going on.

If you’re new to diffusion models, we strongly recommend reading Part 1 first, as we will reuse some concepts from there.

Notations

The Problem with DDPMs

To see why DDIMs are helpful, let’s do a short recap of DDPMs and their main limitation.

Suppose we have a real data sample $\mathbf{x}_0 \sim q(\mathbf{x})$. In the forward process of a DDPM, we gradually corrupt this data by adding small amounts of Gaussian noise over $T$ steps, producing a sequence of increasingly noisy samples $(\mathbf{x}_1, \dots, \mathbf{x}_T)$.

Recall the DDPM forward transition between steps: \begin{equation} q(\mathbf{x}_t \vert \mathbf{x}_{t-1}) = \mathcal{N}(\mathbf{x}_t; \sqrt{1 - \beta_t} \mathbf{x}_{t-1}, \beta_t\mathbf{I}) \label{eq:ddpm-forward} \end{equation}

This equation describes how the model transitions from step $t-1$ to $t$:

• It keeps most of the previous sample, scaling $\mathbf{x}_{t-1}$ by $\sqrt{1 - \beta_t}$;
• It adds a small amount of fresh Gaussian noise with variance $\beta_t$;

Mathematically, each forward step can be written as: \begin{equation} \mathbf{x}_t = \sqrt{1 - \beta_t}\mathbf{x}_{t-1} + \sqrt{\beta_t}\boldsymbol{\epsilon}_{t-1} \quad \quad \text{where } \boldsymbol{\epsilon}_{t-1} \sim \mathcal{N}(\mathbf{0}, \mathbf{I}) \end{equation}

Over steps, this forms a Markov chain: each state $\mathbf{x}_{t}$ depends only on the immediately preceding state $\mathbf{x}_{t-1}$, not on earlier steps.

We can also directly relate a noisy sample $\mathbf{x}_{t}$ back to the original clean sample $\mathbf{x}_{0}$ (see the reparameterization trick): \begin{equation} q(\mathbf{x}_t \vert \mathbf{x}_0) = \mathcal{N}\big(\mathbf{x}_t; \sqrt{\bar{\alpha}_t} \mathbf{x}_0, (1 - \bar{\alpha}_t)\mathbf{I}\big) \label{eq:reparameter} \end{equation} where $\alpha_t = 1 - \beta_t$ and $\bar{\alpha}_t = \prod_{i=1}^t \alpha_i$.

A major benefit of a Markov chain is its simplicity: the next state can be sampled using only the current one.

However, there is a flaw. Because $\beta_t$ must be small to ensure stability, DDPMs require many $(T \gg 0)$ tiny increments to reach the fully noised state $\mathbf{x}_T \sim \mathcal{N}(0,\boldsymbol{I})$, and the reverse process needs an equal number of steps (i.e., $T$) to traverse the entire chain for denoising. This makes generating samples in DDPMs very slow.

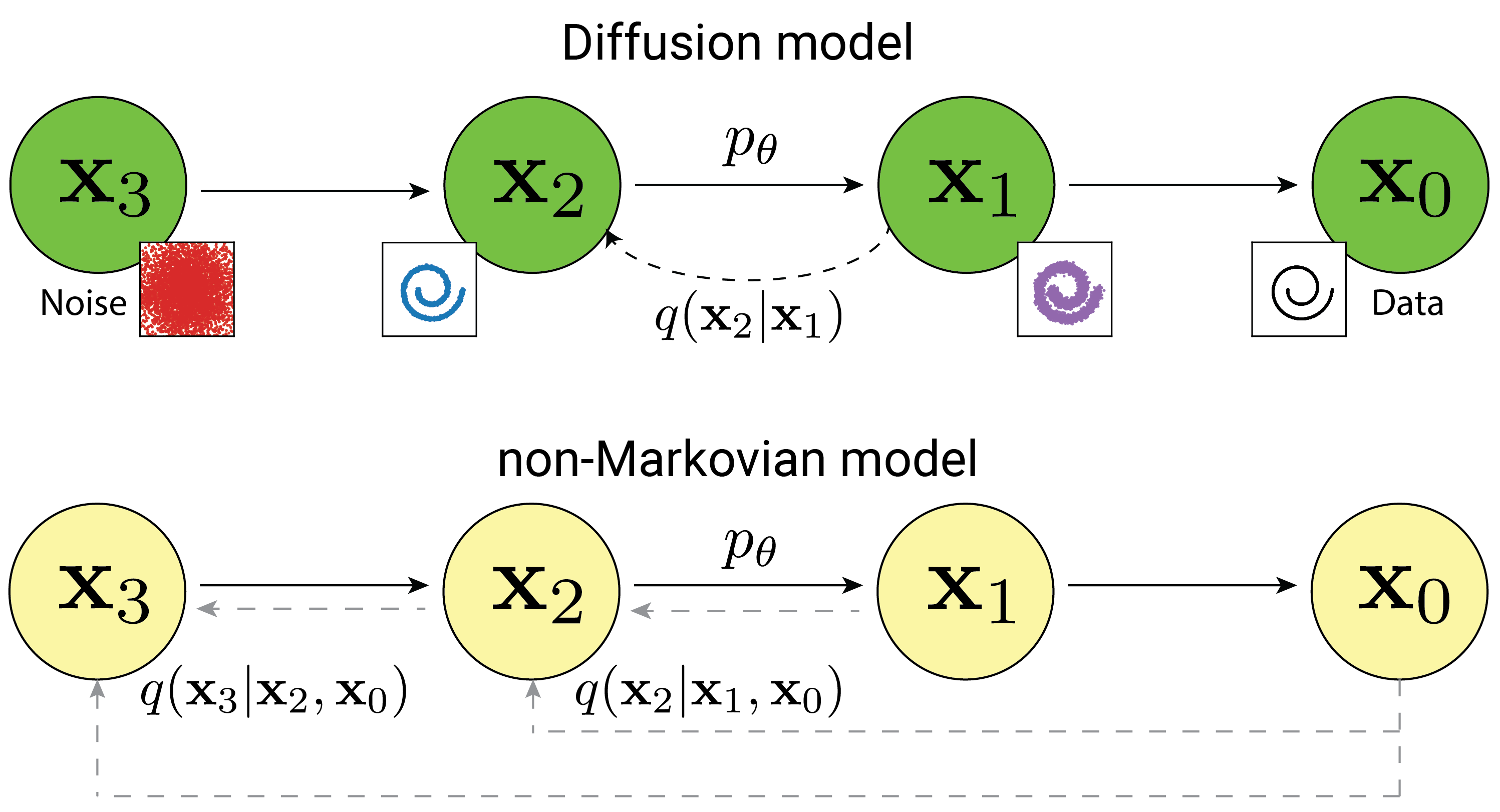

DDIMs address the sampling inefficiency of DDPMs by formulating a non-Markovian process, enabling deterministic and flexible sampling schedules.

A non-Markovian process is a system whose future behavior depends not only on its current state but also on its past history – meaning the process has memory.

Why memory matters?
Memory allows a process to retain information from its past, which often influences its future evolution. Non-Markovian structures capture these dependencies, enabling more accurate modeling of system dynamics, smoother trajectories, and better predictions compared to memoryless (Markovian) systems.

Let’s explore how DDIMs do this!

Non-Markovian Forward Process

To generalize the DDPM forward process, the DDIM paper² first changes the notation slightly. Instead of using the coefficient $\alpha_t$ directly, we express each transition in terms of the ratio $\color{red}\frac{\alpha_t}{\alpha_{t-1}}$. Thus, Eqn \eqref{eq:ddpm-forward} becomes: \begin{equation} q(\mathbf{x}_t \vert \mathbf{x}_{t-1}) = \mathcal{N}\left(\mathbf{x}_t; \sqrt{{\color{red}\frac{\alpha_t}{\alpha_{t-1}}}} \mathbf{x}_{t-1}, \Big(1-{\color{red}\frac{\alpha_t}{\alpha_{t-1}}}\Big)\mathbf{I}\right) \end{equation}

This change does not have any physical meaning but simplifies notation. Under this form, the product term in Eqn \eqref{eq:reparameter} is simplified to:

$$ \bar{\alpha_t}=\prod_{i=1}^t {\color{red}\frac{\alpha_i}{\alpha_{i-1}}}={\alpha_t} \quad \quad ; \text{assuming} \ \alpha_0=1 $$

Here, each intermediate $\alpha_i$ cancels, leaving only $\alpha_t$. Using the reparameterization trick, the forward process becomes: \begin{equation} q(\mathbf{x}_t \vert \mathbf{x}_0) = \mathcal{N}\big(\mathbf{x}_t; \sqrt{{\color{red}\alpha_t}} \mathbf{x}_0, (1 - {\color{red}\alpha_t})\mathbf{I}\big) \end{equation}

Note: The noisy marginals are the same as in the original DDPM. That means any diffusion model trained with the DDPM objective can be reused in the DDIM framework without retraining. The difference will come from how we define the reverse process.

Deterministic Reconstruction

The key idea behind DDIM is to make the reverse process less random (or even fully deterministic), while still matching the same noisy distributions $q(\mathbf{x}_t \vert \mathbf{x}_0)$.

From the marginal we just saw, we can write: \begin{equation} \mathbf{x}_t = \sqrt{\alpha_t}\mathbf{x}_0 + \sqrt{1 - \alpha_t}\boldsymbol{\epsilon} \quad \quad ; \text{where} \quad \boldsymbol{\epsilon} \sim \mathcal{N}(0,\boldsymbol{I}) \label{eq:6} \end{equation}

Similarly, for the previous step: \begin{equation} \mathbf{x}_{t-1} = \sqrt{\alpha_{t-1}}\mathbf{x}_0 + \sqrt{1 - \alpha_{t-1}}\boldsymbol{\epsilon} \label{eq:7} \end{equation}

The trick is that we reuse the same noise $\boldsymbol{\epsilon}$ at both steps. Solving Eqn \eqref{eq:6} for $\boldsymbol{\epsilon}$ gives:

$$ \boldsymbol{\epsilon} = \frac{\mathbf{x}_t - \sqrt{\alpha_t} \mathbf{x}_0}{\sqrt{1 - \alpha_{t}}} $$

Substituting this into Eqn \eqref{eq:7}, we obtain: \begin{equation} \mathbf{x}_{t-1} = \sqrt{\alpha_{t-1}}\mathbf{x}_0 + \sqrt{1 - \alpha_{t-1}} \color{red}\left(\frac{\mathbf{x}_t - \sqrt{\alpha_t} \mathbf{x}_0}{\sqrt{1 - \alpha_{t}}} \right) \label{eq:8} \end{equation}

This formulation removes the need for explicit sampling from a Gaussian at every timestep as in DDPMs. Instead, $\mathbf{x}_{t-1}$ is now a deterministic function of $\mathbf{x}_t$ and an estimate of $\mathbf{x}_0$. This property forms the foundation for more efficient sampling.

A family of inference processes

The DDIM paper defines not just one process, but a family of possible inference processes. Each member of this family is controlled by a vector $\sigma \in \mathbb{R}^T_{\ge 0}$, which decides how much extra noise we allow at each step:

\begin{equation} q_{\sigma}(\mathbf{x}_{1:T} \vert \mathbf{x}_0) = q_{\sigma}(\mathbf{x}_T \vert \mathbf{x}_0) \prod^T_{t=2} q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, \mathbf{x}_0) \end{equation} where the terminal distribution is defined as $$ q_{\sigma}(\mathbf{x}_T \vert \mathbf{x}_0) = \mathcal{N}\big(\sqrt{\alpha_T} \mathbf{x}_0, (1 - \alpha_T)\mathbf{I}\big) $$

The forward process is also Gaussian and can be derived from Bayes’ rule:

\begin{equation} q_{\sigma}(\mathbf{x}_{t} \vert \mathbf{x}_{t-1}, \mathbf{x}_0) = \frac{q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, \mathbf{x}_0) q_{\sigma}(\mathbf{x}_{t} \vert \mathbf{x}_0)}{q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_0)} \label{eq:ddim-forward} \end{equation}

You don’t need to memorize these formulas. The main takeaway is:

• We now allow transitions that depend on both the current state $\mathbf{x}_t$ and the original data $\mathbf{x}_0$.
• This makes the process non-Markovian (it has “memory”).

Generative Processes

The most important requirement in DDIM is:

For every time step $t$, the marginal distribution $q_{\sigma}(\mathbf{x}_{t} \vert \mathbf{x}_0)$ should have the same form as in a DDPM:

\begin{equation} q_{\sigma}(\mathbf{x}_{t} \vert \mathbf{x}_0) = \mathcal{N}\big(\sqrt{\alpha_{t}} \mathbf{x}_0, (1 - \alpha_{t})\mathbf{I}\big) \label{eq:9} \end{equation}

Why do we want this?

• At $t=0$, we want $\mathbf{x}_t$ to reduce to the original data $\mathbf{x}_0$.
• At $t=T$, we want $\mathbf{x}_T$ to look like almost pure Gaussian noise.
• Keeping the same form makes it possible to reuse DDPM-trained models.

There are many different choices of the reverse transition distribution $q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, \mathbf{x}_0)$, but only some of them can ensure that $q_{\sigma}(\mathbf{x}_t \vert \mathbf{x}_0)$ has the desired structure we want above in Eqn \eqref{eq:9}. For this purpose, the reverse transition distribution in DDIM is chosen as follows²:

\begin{equation} q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, \mathbf{x}_0) = \mathcal{N}\big(\sqrt{\alpha_{t-1}}\mathbf{x}_0 + \sqrt{1 - \alpha_{t-1}-\sigma_t^2} \left(\frac{\mathbf{x}_t - \sqrt{\alpha_t} \mathbf{x}_0}{\sqrt{1 - \alpha_{t}}} \right), \sigma_t^2\mathbf{I}\big) \end{equation}

Check out this tutorial³ to see the detailed derivation of this transition distribution.

Here, the magnitude of $\sigma_t$ controls how much fresh noise is injected at each step. If $\sigma=0$, the process becomes fully deterministic, and we get a DDIM. If $\sigma$ is chosen to match the DDPM posterior variance, we recover DDPM sampling.

Inference for DDIM

Now let’s see how DDIM actually uses a neural network to go from noise back to data.

From the marginal: \begin{equation} \underbrace{\mathbf{x}_t}_{\text{given}} = \underbrace{\sqrt{\alpha_t}\mathbf{x}_0}_{\text{want to find}} + \underbrace{\sqrt{1 - \alpha_t}\boldsymbol{\epsilon}}_{\text{estimated by network}} \end{equation}

We can rearrange to solve for the clean sample $\mathbf{x}_0$: \begin{equation} \mathbf{x}_0 = \frac{1}{\sqrt{\alpha_t}} \left( \mathbf{x}_t - \sqrt{1 - \alpha_t}\boldsymbol{\epsilon} \right) \\ \end{equation}

In practice, we don’t know $\boldsymbol{\epsilon}$, so we train a neural network to predict the noise. Plugging this estimate in, we get a prediction of the clean sample:

\begin{equation} {\color{red}f_{\theta}^{(t)}(\mathbf{x}_t)} = \frac{1}{\sqrt{\alpha_t}} \left( \mathbf{x}_t - \sqrt{1 - \alpha_t} \cdot {\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)} \right) \end{equation}

There are two new terms in this equation. The first one is $\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)$, which replaces $\boldsymbol{\epsilon}$. It is the estimate of the noise based on the current input $\mathbf{x}_t$. The second term is the denoised estimator $\color{red}f_{\theta}^{(t)}(\mathbf{x}_t)$, which is a prediction of the true signal $\mathbf{x}_0$ given $\mathbf{x}_t$.

Returning to the transition distribution $q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, \mathbf{x}_0)$, if we do not have access to $\mathbf{x}_0$, we can replace it with $\color{red}f_{\theta}^{(t)}(\mathbf{x}_t)$:

\begin{equation} \begin{aligned} p_{\theta}(\mathbf{x}_{t-1} \vert \mathbf{x}_t) &= q_{\sigma}(\mathbf{x}_{t-1} \vert \mathbf{x}_t, {\color{red}f_{\theta}^{(t)}(\mathbf{x}_t)}) \\ &= \mathcal{N}\big(\sqrt{\alpha_{t-1}} \left( \frac{\mathbf{x}_t - \sqrt{1 - \alpha_t}\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)}{\sqrt{\alpha_t}} \right) + \sqrt{1 - \alpha_{t-1}-\sigma_t^2} \cdot {\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)}, \sigma_t^2\mathbf{I}\big) \end{aligned} \label{eq:reverse-eq} \end{equation}

The process can be summarized as follows:

• Take a noisy sample $\mathbf{x}_t$;
• Use the network to predict the noise $\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)$;
• Use that to estimate the clean sample $\mathbf{x}_0$;
• Use the DDIM update rule to compute the next sample $\mathbf{x}_{t-1}$.

For the special case where $t=1$, we define: $$ p_{\theta}(\mathbf{x}_{0} \vert \mathbf{x}_1) = \mathcal{N}\big( {\color{red}f_{\theta}^{(1)}(\mathbf{x}_1)}, \sigma_1^2\mathbf{I} \big) $$ meaning that we add some Gaussian noise (with covariance $\sigma_1^2\mathbf{I}$) so that the generative process is supported everywhere.

Even though the reverse process has changed, the resulting training objective turns out to be equivalent to the DDPM objective up to a constant. So the same trained model can be used for both DDPM and DDIM sampling.

\begin{equation} J_{\sigma}(\boldsymbol{\epsilon}_{\theta}) = \mathbb{E}_{\mathbf{x}_{0:T} \sim q(\mathbf{x}_{0:T})} \left[ \log q_\sigma(\mathbf{x}_{1:T} \vert \mathbf{x}_0 ) - \log p_{\theta}(\mathbf{x}_{0:T}) \right] \end{equation}

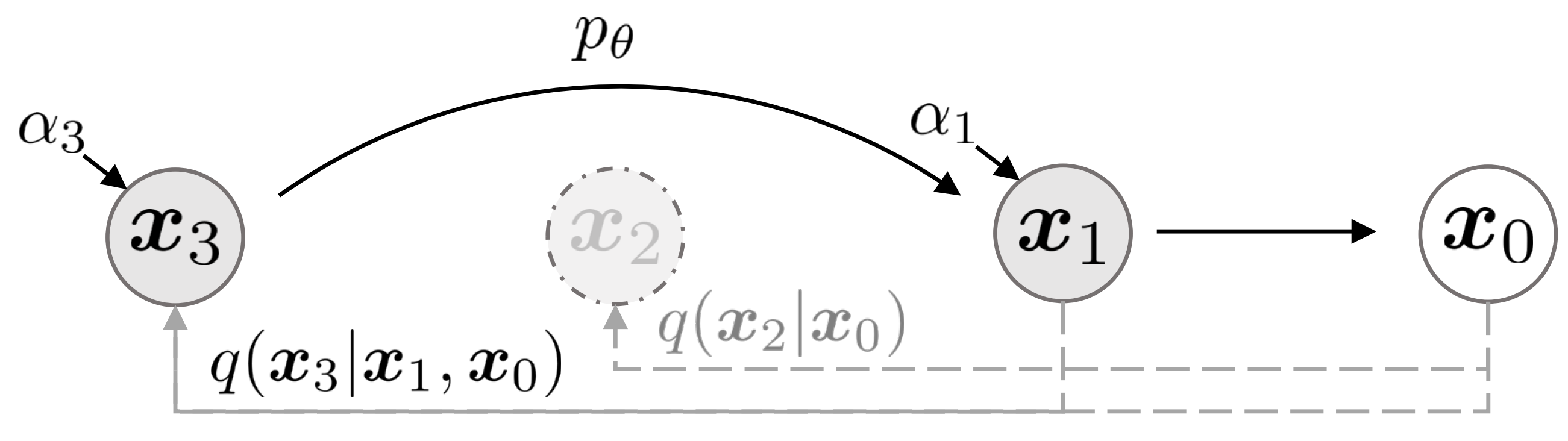

Accelerated sampling

In a traditional DDPM, a full generative trajectory requires iterating through all $T$ diffusion steps. However, DDIM introduces a key insight: the sampling schedule (which timesteps we visit during generation) is not tied to the original forward-noising schedule. This flexibility allows us to define a subset of timesteps $\tau = \{\tau_1,\dots,\tau_S\}$ and run the reverse process only at those points.

In other words, instead of stepping through all $T$ noise levels, we can “jump” between them while still following a coherent generative path. Each DDIM update remains stable and predictable because it is derived from the deterministic structure of the transition. When the length of this sampling trajectory $S \ll T$, we can achieve a significant increase in computational efficiency while still preserving high sample quality.

This is the foundation of accelerated sampling in DDIM and one of the main reasons it is widely used in practice.

DDPM vs DDIM: Key Differences

The DDPM reverse update (in one common form) looks like: \begin{equation} \mathbf{x}_{t-1} = \frac{1}{\sqrt{\alpha_t}} \left( \mathbf{x}_t - \frac{1 - \alpha_t}{\sqrt{1 - \bar{\alpha}_t}} \boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t) \right) + \sqrt{\tilde{\beta}_t} \boldsymbol{\epsilon}_t \end{equation}

This update is stochastic – even with the same starting noise, repeated runs give different trajectories.

From the DDIM derivation, the reverse update can be written as: \begin{equation} \mathbf{x}_{t-1} = \sqrt{\alpha_{t-1}} \underbrace{\left(\frac{\mathbf{x}_t - \sqrt{1 - \alpha_t} {\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)} }{\sqrt{\alpha_t}}\right)}_{\text{predicted} \ x_0} + \underbrace{\sqrt{1 - \alpha_{t-1} - \sigma_t^2} \cdot {\color{red}\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)}}_{\text{direction pointing to } \mathbf{x}_t} + \underbrace{\sigma_t \boldsymbol{\epsilon}_t}_{\text{random noise}} \label{eq:sample-eq-gen} \end{equation}

While both DDPM and DDIM use $\mathbf{x}_t$ and $\boldsymbol{\epsilon}_{\theta}^{(t)}(\mathbf{x}_t)$ in their updates, the specific update formula leads to different convergence speeds.

There are two special cases:

1. When $\sigma_t = 0$
   • The random noise term disappears;
   • The trajectory becomes fully deterministic (this is DDIM);
2. When $\sigma_t=\sqrt{\frac{1 - \alpha_{t-1}}{1 - \alpha_t}} \sqrt{1 - \frac{\alpha_t}{\alpha_{t-1}}}$
   • The process becomes equivalent to a DDPM (a Markov chain);
   • We recover the original DDPM sampling behavior;

It is straightforward to prove the second point: $$ \begin{aligned} \sigma_t&=\sqrt{\frac{1 - \alpha_{t-1}}{1 - \alpha_t}} \sqrt{1 - \frac{\alpha_t}{\alpha_{t-1}}} \quad \quad \color{green}\small{\text{DDIM}} \\
&=\sqrt{\frac{1 - {\color{red}\bar{\alpha}_{t-1}}}{1 - {\color{red}\bar{\alpha}_t}}} \underbrace{\sqrt{1 - {\color{red}\alpha_t}}}_{\sqrt{\beta_t}} \quad \quad \quad \ \color{green}\small{\text{DDPM; notation change from $\alpha_t$ to $\frac{\alpha_t}{\alpha_{t-1}}$}} \\ &= \sqrt{\tilde{\beta}_t} \end{aligned} $$

So DDIM and DDPM are not completely separate models. DDIM gives us a continuum of samplers, where DDPM and deterministic DDIM are just two endpoints.

Summary

Let’s recap the main ideas:

• DDPMs gradually add and remove noise in many small steps, which makes sampling slow but produces very high-quality results.
• DDIMs keep the same noisy distributions $q(\mathbf{x}_t \vert \mathbf{x}_0)$ but change the reverse process to be non-Markovian and often deterministic.
• By reusing the same noise across steps and introducing “memory” of the original data, DDIMs can take larger jumps along the diffusion trajectory.
• This allows DDIM to use far fewer sampling steps (e.g., 10–50 instead of 1000+) while maintaining similar sample quality.
• Because the training objective is essentially the same, a model trained as a DDPM can usually be used directly for DDIM sampling.

In short: DDIM is a faster way to sample from diffusion models that you can apply to many existing DDPM models without retraining.
